Drone LED lights meanings
DJI Mini 2

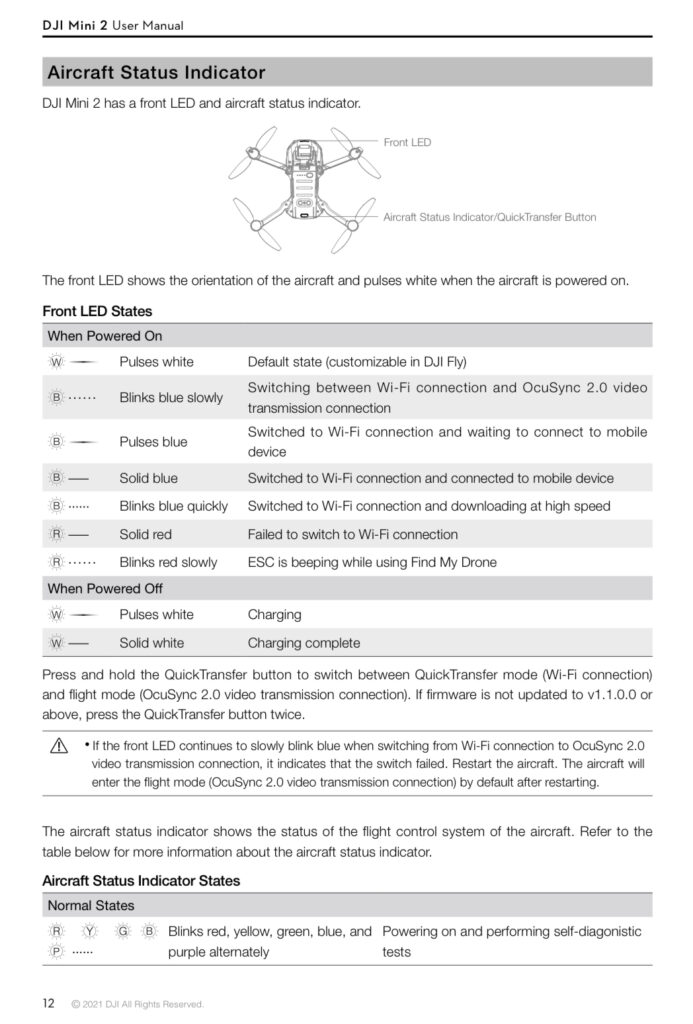

Dul Mini 2 has a front LED and aircraft status indicator.
Front LED
|
The front LED shows the orientation of the aircraft and pulses white when the aircraft is powered on. Front LED States |
||
|
When Powered On |
||
|
W |
Pulses white |
Default state (customizable in DJI Fly) |
|
B….. |
Blinks blue slowly |
Switching between Wi-Fi connection and OcuSync 2.0 video transmission connection |
|
Pulses blue |
Switched to Wi-Fi connection and waiting to connect to mobile device |
|
|
B — |
Solid blue |
Switched to Wi-Fi connection and connected to mobile device |
|
B … |
Blinks blue quickly |
Switched to Wi-Fi connection and downloading at high speed |
|
Solid red |
Failed to switch to Wi-Fi connection |
|
|
R…. |
Blinks red slowly |
ESC is beeping while using Find My Drone |
|
When Powered Off |
||
|
Pulses white |
Charging |
|
|
w_ |
Solid white |
Charging complete |
Press and hold the QuickTransfer button to switch between QuickTransfer mode (Wi-Fi connection) and flight mode (OcuSync 2.0 video transmission connection). If firmware is not updated to v1.1.0.0 or above, press the QuickTransfer button twice.
• If the front LED continues to slowly blink blue when switching from Wi-Fi connection to OcuSync 2.0 video transmission connection, it indicates that the switch failed. Restart the aircraft. The aircraft will enter the flight mode (OcuSync 2.0 video transmission connection) by default after restarting.
The aircraft status indicator shows the status of the flight control system of the aircraft. Refer to the table below for more information about the aircraft status indicator.
Aircraft Status Indicator States
Normal States
B
P: …
B) Blinks red, yellow, green, blue, and Powering on and performing self-diagonistic purple alternately
tests
